EN

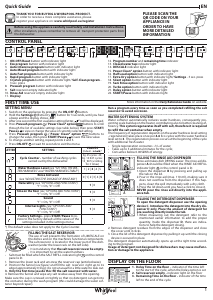

Quick Guide

1

4 5 6 7 8 9 10 13 14 1511 12 16 17 18 191 2 3 20 21 22

1. ON-OFF/Reset button with indicator light

2. Eco program button with indicator light

3. Auto Intensive program button with indicator light

4. Auto Mixed program button with indicator light

5. Auto Fast program button with indicator light

6. Rapid program button with indicator light

7. Crystals program button with indicator light/ Self-Clean program -

3sec. press

8. Prewash program button with indicator light

9. Salt reservoir empty indicator light

10. Rinse Aid reservoir empty indicator light

11. Display

12. Program number and remaining time indicator

13. Closed water tap indicator light

14. DESCALE indicator light

15. Power Clean® option button with indicator light

16. Half Load option button with indicator light

17. Extra Dry option button with indicator light/ Settings - 3 sec. press

18. Silent option button with indicator light

19. Sani Rinse option button with indicator light

20. Turbo option button with indicator light

21. Delay option button with indicator light

22. START/Pause button with indicator light

SETTING MENU

1. Switch on the appliance by pressing the ON-OFF button.

2. Hold the Settings (Extra Dry ) button for 3 seconds, until you hear

abeep and the display shows „SEt”.

3. After one second the rst available setting (letter „ ”) will be displayed.

4. Press Prewash prograam / Power Clean® option buttons to scroll

through the list of available settings (see table below), then press START/

Pause to view or change the value of currently selected setting.

5. Press Prewash program / Power Clean® option buttons to

change the value, then press START/Pause to save the new value.

6. To change another setting, repeat points 2 and 5.

7. Press ON-OFF or wait 30 seconds to exit the menu.

LETTER

SETTING

VALUES

(Default - in bold)*

Cycle Counter - number of washing cycles

carried out by the dishwasher.

Eg. 25 cycles: 25;

Eg. 13.947 cycles:

13_947

(scrolling

for 3 times)

Water Hardness Level (see “SETTING THE WA-

TER HARDNESS” and “WATER HARDNESS TABLE”)

1 | 2 | 3 | 4 | 5

Rinse Aid Level

(see “ADJUSTING THE DOSAGE OF RINSE AID”)

0 | 1 | 2 | 3 | 4 | 5

NaturalDry (see “OPTIONS AND FUNCTIONS”)

“1” = On, “0” = O

1 | 0

Time on the oor (see “OPTIONS AND FUNCTIONS”)

“1” = On, “0” = O

1 | 0

Sound

“1” = On, “0” = O

1 | 0

Internal Lights (see “OPTIONS AND

FUNCTIONS”)

“1” = On, “0” = O

1 | 0

Factory Settings - press START/Pause to re-

store to the factory default all the values of the

settings included in the settings menu.

-

*) The default value does not apply to the Cycle Counter.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on

the dishes and on the machine’s functional components.

The salt reservoir is located in the lower part of the dish-

washer (under the lower rack on the left side).

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

• Salt must be lled when the SALT REFILL indicator light on the control

panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).

2. Position the funnel (see gure) and ll the salt reservoir right up to its

edge (approximately 0,5 kg); it is not unusual for alittle water to leak out.

3. Only the rst time you do this: ll the salt reservoir with water.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly so that no detergent can get into

the container during the wash program (this could damage the water sof-

tener beyond repair).

Run aprogram every time as soon as you completed relling the salt

reservoir to avoid corrosion.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently pre-

venting scale buildup on the heater, contributing also to better cleaning ef-

ciency. This system regenerates itself with salt, therefore it is required

to rell the salt container when empty.

The frequency of regeneration depends on the water hardness level setting

- regeneration takes place once per 4-6 Eco cycles with the water hardness

level set to 3. The regeneration process occurs at the beginning of the cycle

with additional fresh water.

• Single regeneration consumes ~3 L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

A

B

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dis-

penser Ashould be lled when the RINSE AID REFILL

indicator light in the control panel is lit.

1. Open the dispenser B by pressing and pulling up

the tab on the lid.

2. Pour in the rinse aid (max. 110 ml), making sure it

does not overow from the dispenser. If this hap-

pens, clean the spill immediately with adry cloth.

3. Press the lid down until you hear aclick to close it.

NEVER pour the rinse aid directly into the appli-

ance tub.

D

C

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening

device C. Introduce the detergent into the dry dis-

penser D only. Place the amount of detergent for

pre-washing directly inside the tub.

1. When measuring out the detergent refer to the

mentioned earlier information to add the proper

quantity. Inside the dispenser D, there are indica-

tions to help the detergent dosing.

2. Remove detergent residues from the edges of the dispenser and close

the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the closing

device is secured in place.

The detergent dispenser automatically opens up at the right time accord-

ing to the program.

Usage of detergent not designed for dishwashers may cause malfunc-

tion or damage to the appliance.

CONTROL PANEL

FIRST TIME USE

More information in the Daily Reference Guide on website.

THANK YOU FOR BUYING AWHIRLPOOL PRODUCT.

In order to receive amore complete assistance, please

register your appliance on: www.whirlpool.eu/register

PLEASE SCAN THE

QR CODE ON YOUR

APPLIANCE IN

ORDER TO HAVE

MORE DETAILED

INFORMATION

Before using the appliance carefully read Safety and Installation Instructions.

After installation, please remember to remove all transport protection parts from

the dishwasher.

1

3

2

1. Delay Time on the oor - indicator of the time left

to the start of the cycle, when the Delay option is set

2. Salt reservoir empty - indicator light on the oor

3. Remaining Time on the oor - indicator of the time

left to the end of the cycle

DISPLAY ON THE FLOOR
