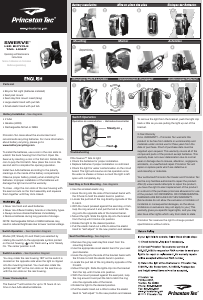

Bedienungsanleitung Princeton Tec Swerve Fahrradlampe

Bedienungsanleitung

• Bicycle Tail Light (batteries installed)

• Seat post mount

• Seat stay/fork mount insert (Gray)

• Large elastic band with pull tab

• Small elastic band with pull tab

• 2 AAA

• Alkaline (LR03)

• Rechargeable NiCad or NiMH

• Never mix fresh and used batteries.

• Never mix different battery brands or chemistry types.

• Always remove drained batteries immediately.

• Remove batteries during long periods of storage.

NOTE: Rechargeable NiCad or NiMH batteries may

result in reduced brightness due to lower nominal voltage.

If the Swerve™ fails to light:

• Check the batteries for proper installation.

• Replace batteries if proper installation is confirmed.

• Check the light for water contamination on the circuit

board. The light will resume normal operation once

the water is shaken or blown out and the light is left

open until completely dry.

• Use the smallest elastic ring.

• Hook the ring into the side of the bracket barrel with

the R hook to hold the elastic band in position.

• Locate the pull tab of the ring directly opposite of the

R catch.

• With the mount pressed against the seat stay or fork,

loop the ring around it and pull the tab to latch the

ring onto the opposite side of the bracket barrel.

• Mount the light. Slide the lights clip into the bracket

from the top until it locks into position.

• Rotate the light to the desired position.

• Pull the elastic band out a little to allow the elastic

band to “self adjust” to the new position and release.

• Remove the gray seat stay/fork insert from the

mounting bracket.

• Use the appropriate sized elastic band for your seat

post diameter.

• Hook the ring into the side of the bracket barrel with

the R hook to hold the elastic band in position.

• Locate the pull tab of the ring directly opposite of the

R catch.

• Mount the light. Slide the lights clip into the bracket

from the top until it locks into position.

• With the mount pressed against the seat post, loop

the ring around it and pull the tab to latch the ring

onto the opposite side of the barrel.

• Rotate the light to the desired position.

• Pull the elastic band out a little to allow the elastic

band to “self adjust” to the new position and release.

To remove the light from the bracket, push the light clip

back a little as you are pulling the light up out of the

bracket.

Power Consumption

Seat Stay or Fork Mounting - See diagrams

Troubleshooting

Seat Post Mounting - See diagrams

SWERVE

LED BICYCLE

TAIL LIGHT

Parts List

Princeton Tec cares about the environment and

recommends recycling batteries. For more information

about battery recycling, please go to:

www.batteryrecycling.com

To install the batteries, use a coin in the coin slots to

unlatch the back housing from the front. Open the

Swerve by inserting a coin in the first slot. Rotate the

coin to pop the first latch. Now place the coin in the

second slot to complete the opening operation.

Install two AAA batteries according to the polarity

markings on the inside of the battery compartment.

Observe proper battery polarity when installing the

batteries. Improper installation of the batteries will

damage the light and void the warranty.

To close - Align the coin slots of the rear housing with

the seal cut outs on the front assembly and squeeze

them together until they click closed.

Modes (Off, Steady On and Flash) are selected by

rotating the switch to the appropriate symbol printed

on the red housing. is for Flash and

is for Steady

On. The center position is off.

You may rotate the rear housing 180º so the switch is

located on the opposite side when the light is clipped

into the mounting bracket. You must also rotate the

(white) seal 180º so the coin slots on the seal line up

with the coin slots on the rear housing.

Switch Location - See Operation Diagram

Switch Operation - See Operation Diagram

The Swerve™ will function for up to 70 hours of run

time on two AAA alkaline batteries.

3-Year Warranty

FULL WARRANTY – Princeton Tec warrants this

product to be free from defects in workmanship and

materials under normal use for three years from the

date of purchase. Proof of purchase date must be

supplied upon request. This warranty covers all of the

component parts of the product except batteries. This

warranty does not cover deterioration due to normal

wear or damage due to misuse, alteration, negligence,

accidents, or unauthorized repair. Princeton Tec will

repair or replace parts which are defective in

workmanship or materials.

Your authorized Princeton Tec Dealer and Princeton Tec

are the only facilities authorized to repair the product.

After (3) unsuccessful attempts to repair the product,

you have the right to elect replacement of the product

or a refund of the purchase price less allowance for use

of the product. NO INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARE INCLUDED IN THIS WARRANTY.

(Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above

limitations or exclusions may not apply to you.) This

warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

Princeton Tec reserves the right to change product

specifications without notice.

Battery Installation - See diagrams

Operating and Maintenance

Instructions

Notice d’utilisation et d’entretien

Bedienungsanleitung

™

2013

Steady on

Flash

Off

Remove shim for

seatpost mounting

Switch Operation

Opération de commutation - Betriebsartenschalter

Changing Switch Location l'emplacement changeant Änderungsschalterort

Mounting Monter Aufstellen
