■HDMI (High Definition Multimedia Interface) connection : (*)

• You can connect the source component (DVD player, etc.) to the display component (TV, projector, etc.) through this receiver

with using a commercially available HDMI cord.

• The HDMI connection can carry uncompressed digital video signals and digital audio signals.

• The HDMI video stream signals (video signals) are theoretically compatible with DVI-D. When connecting to a TV monitor,

etc., equipped with DVI-D connector, it is possible to connect using a commercially available HDMI-DVI converter cord.

Since the HDMI-to-DVI connection cannot carry any audio signals, set the HDMI AUDIO OUT to AMP to hear the HDMI digital

audio signals on this receiver.(For details, refer to "When selecting the HDMI AUDIO OUT" on page 50.)

■Copyright protection system

• This unit supports HDCP (High-bandwidth Digital Contents Protection), technology to protect copyright of digital video signals

against illegal duplication. HDCP must also be supported on the components connected to this unit.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing

LLC.

■Notes :

• For stable signal transfer, we recommend using HDMI cables that are a maximum of 5 meters in length.

• Among the components that support HDMI, some components can control other components via the HDMI connector.

For details on the HDMI function, refer to “CONFIRMING THE HDMI FUNCTION” on page 36 and “SETTING THE HDMI

SETUP” on page 50.

• The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the

component that is connected.

• The video signals will not be output properly if a component incompatible with HDCP is connected.

• If the resolutions of the video signals which are output from the MONITOR OUTs and your monitor TV are not matched, the

picture is not clear, natural or displayed. In this case, change the setting of the resolution on the source component (BD

player, etc.) to one which the monitor TV can handle. (For details, refer to the operating instructions of the source component.)

• When you want to enjoy only the picture on your TV, not the sound, you should set the HDMI AUDIO OUT to AMP not to

output the digital audio signal from the HDMI MONITOR OUT of this receiver. (For details, refer to "When selecting the HDMI

AUDIO OUT" on page 50.)

CD

RL

IN

AUDIO

CD

VIDEO 1

TAPETAPE

RL

IN

OUT

TAPE Tape deck, MD recorder, etc.

AUDIO

OUT

HDMI OUT

AUDIO

IN

CD player, BD player, Video game player, etc.

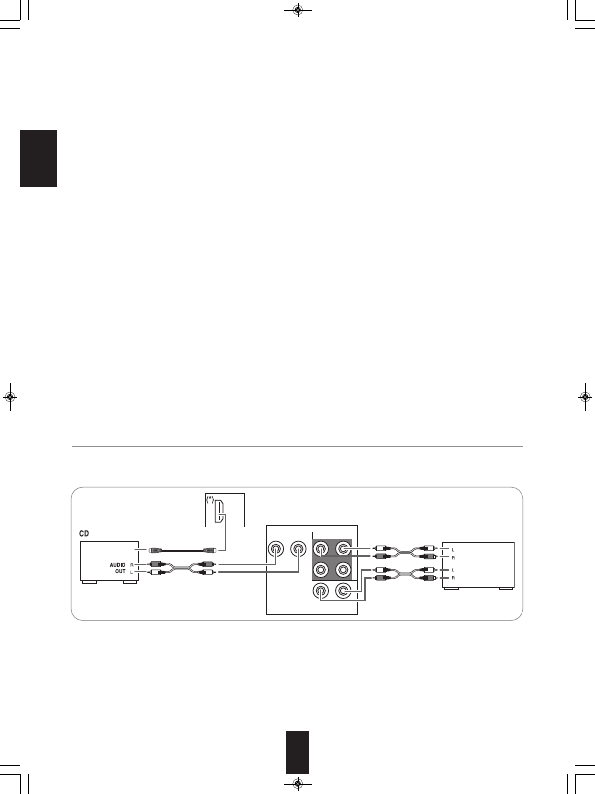

3. CONNECTING AUDIO COMPONENTS

• The TAPE IN/OUT jacks can be connected to audio recording equipment such as a tape deck, an MD recorder, etc.

• The HDMI IN of CD can be connected to an additional video component without analog video jacks.

Continued
