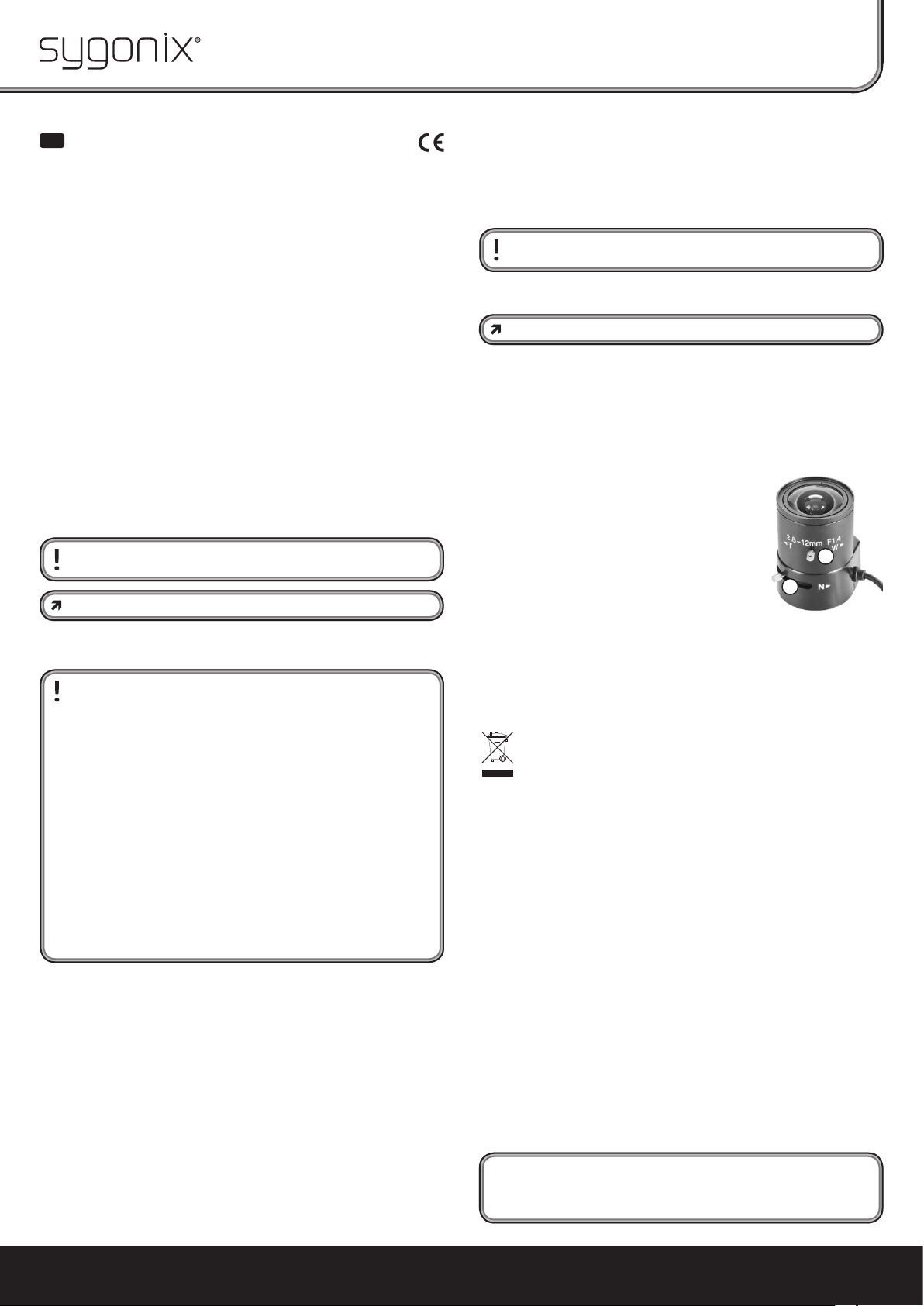

Bedienungsanleitung Sygonix Auto Iris 2.8-12mm Objektiv

Bedienungsanleitung

The home technology brand for the entire house. More information at www.sygonix.com

GB

Operating instructions

Auto-Iris Lens 2.8 - 12 mm

These operating instructions are a publication by Sygonix GmbH, Nordring 98a, 90409 Nürnberg (www.sygonix.com).

All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfi lming, or the capture

in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is

prohibited. These operating instructions represent the technical status at the time of printing. Changes in techno-

logy and equipment reserved. © Copyright 2011 by Sygonix GmbH.

Nr. 43199Q - Version 09/11Legal notice

Intended use

The lens is intended for use together with surveillance cameras with an appropriate

4-pin control socket for DC auto-iris lenses.

The product is only intended for use in dry, closed interiors, it must not get damp or

wet.

The safety instructions must be observed at all times!

Any other use than that described above may damage the product. Moreover, this

may give rise to hazards such as short-circuiting, fi re, electric shock, etc. No part of the

product may be modifi ed or converted!

This product complies with the applicable National and European requirements.

All names of companies and products are the trademarks of the respective owner. All

rights reserved.

Contents

• Auto-iris lens

• Operating Instructions

Explanation of the Symbols

This symbol indicates specifi c risks associated with handling, function and

use.

The "arrow" symbol indicates special tips and operating information.

Safety Instructions

The warranty will be void in the event of damage caused by failure to ob-

serve these safety instructions! We do not assume any liability for any

consequential damage!

Nor do we assume liability for damage to property or personal injury

caused by improper use or failure to observe the safety instructions. The

warranty will be void in such cases.

• The unauthorised conversion and/or modifi cation of the product is not per-

mitted for safety and approval reasons (CE). Never dismantle the product.

• The product is not a toy and should be kept out of the reach of children.

• The lens should only be used in dry indoor areas, do not expose it to damp

or wet conditions!

• The lens should not be exposed to extreme temperatures, direct sunlight,

intense vibrations or heavy mechanical stress.

• Do not leave packaging material carelessly lying around since it could

become a dangerous plaything for children.

• Handle the product with care, it can be damaged by impacts, blows, or

accidental drops, even from a low height.

• If you have any questions that are not answered in this manual, please con-

tact our technical service or another specialist.

Installation

• First, disconnect the the operating voltage supply to the surveillance camera on

which the lens is to be mounted.

• If necessary, remove a lens that might already be mounted on your surveillance cam-

era. Usually, you have to loosen a grub screw. Then, the lens can be unscrewed (turn

anti-clockwise).

Do not touch the image sensor inside the camera, this will damage it!

• Screw the new lens tightly on to your camera. However, do not use force.

• If you fi rst loosened a grub screw at your camera, screw it tight once again.

The grub screw is used to prevent rotation while setting the lens rings.

• Connect the 4-pin auto-iris jack with the corresponding socket of your surveillance

camera.

• Check your camera settings. The DC iris mode must be activated here (e.g. called

"DC" or "DC DRIVE" or similar).

• Connect the operating voltage supply to the surveillance camera; then, adjust the

lens, see next section.

Adjusting Zoom, Focusing the Image

2

1

• First unfasten the two fastening screws (1 and 2). Rotate

them slightly counter-clockwise so that both lens rings

can be rotated.

• Turn the front lens ring (2) to the left or right to adjust

the desired focal length.

Then focus the image with the rear lens ring (1).

• Afterwards, fasten the two lens rings again using the

two fastening screws (1 and 2).

Cleaning

Occasionally clean the lens to remove dust and dirt To that effect, use a clean, soft, dry

cloth! Do not rub too hard, so as to avoid scratch marks on the glass; otherwise, this

will cause deterioration in the image quality!

Disposal

Dispose of the unserviceable product according to the relevant statutory

regulations!

Technical Data

Focal length: 2.8 – 12 mm

F-stop: F1.4

Detection angle: Horizontal 30 - 104°

Type: CS-Mount, 8.5 mm (1/3“)

Lens type: Auto Iris, DC
