A power cord is not supplied with the appliance, but the hob is

equipped with a terminal block which enables you to choose the

correct connection for the particular power supply.

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer

safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in

accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out

by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not

it results in damage to goods or injury to individuals.

2 GB

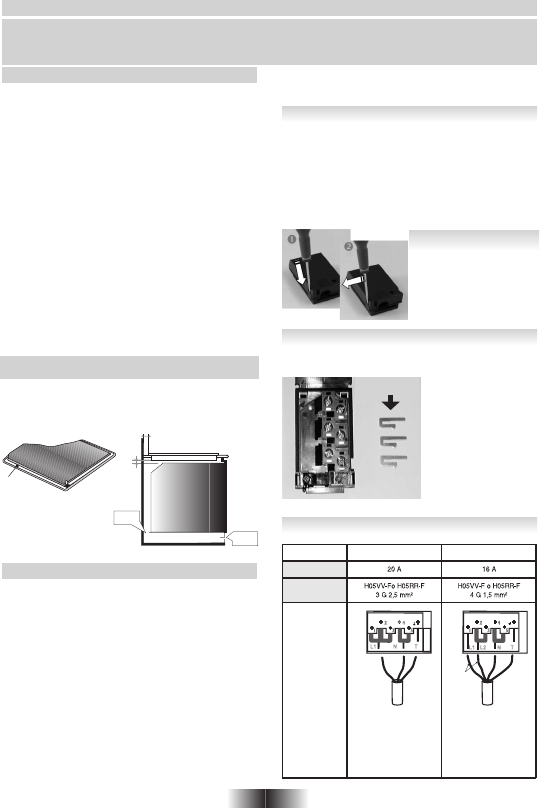

BUILT-IN

The furniture in which your hob will be installed and all adjacent

furniture, should be made from materials that can withstand high

temperatures. In addition, all decorative laminates should be fixed

with heat-resistant glue.

Installation:

• A watertight seal is supplied with the hob.

Before fitting:

- turn the hob upside down, with the glass surface facing downwards.

Make sure the glass is protected.

- fit the seal round the hob.

- make sure that it is correctly fitted to avoid any leakage into the

supporting cabinet.

• It is important to fit the hob on a level supporting surface.

• Deformations caused by incorrect fitting can alter the specifications

of the worktop and the performance of the hob.

• Leave a gap of at least 5 cm between the appliance and any

neighbouring vertical surfaces.

• It is absolutely essential that the recess conforms with the

dimensions indicated.

• The height of the flush-mounted part of the hob is 5,5 cm.

• If there is an intermediate division :

- the clearance between the bottom of the casing and an

intermediate floor or part of a furniture unit must greater than

2,5 cm so as to allow air circulate.

The minimum distance should be 8 cm.

- furthermore, you should ensure that there is at the rear a

ventilation (8 cm) on all the width.

• You can not build the hob in above an oven with no fan, a

dishwasher, fridge, freezer or washing machine.

• The body of the hob is fitted which 4 location holes to take the

fixing clamps intended to fix the hob in the unit. Place the 4 fixing

clamps, before building-in the hob, in such a way that the hob

is placed perfectly in the support unit.

INSTALLATION

"The installation must conform to the standard directives."

The manufacturer declines all responsibility for any damage that

may be caused by unsuitable or unreasonable use.

Warning :

• Always check before any electrical operation, the supply tension

shown on the electricity meter, the adjustment of the circuit-

breaker, the continuity of the connection to earth to the installation

and that the fuse is suitable.

• The electrical connection to the installation should be made via

a socket with a plug with earth, or via an omnipole cut-out switch

with an opening gap of at least 3 mm.

If the appliance has a socket outlet, it must be installed so that

the socket outlet is accessible.

• The yellow/green wire of the power supply cable must be

connected to the earth of both power supply and appliance

terminals.

• The manufacturer cannot be held responsible for any accidents

resulting from the use of an appliance which is not connected

to earth, or with a faulty earth connection continuity.

• Any queries regarding the power supply cord should be referred

to After Sales Service or a qualified technician.

ELECTRICAL CONNECTION

Seal

Hob

25 mm

mini

50 mm

Opening

500 X 50

Opening

500 X 10

To proceed with the connection, you must adhere to the following

instructions.

• Before making the connection, make sure that the installation

is protected by a suitable fuse, see table, and that it is fitted

with wires of a large enough section to supply the appliance

normally.

• Choose the supply cord in accordance with the recommendations

in the table.

• Turn the hob, with the glass side against the worktop, providing

you have protected the glass !

CONNECTION TO THE TERMINALS ON THE TERMINAL BLOCK:

ELECTRICAL CONNECTION

• Open the cover in the following

sequence:

• find the two tabs located on the

sides,

• put the blade of a flat screw-

driver in front of each tab, push

in and press,

• remove the cover.

• Connect the power supply cable:

• comply with the information of the table and the markings

on the terminal board and install the shunts (the shunts, inserted

in the terminal board, make a bridge between two terminals),

• strip the end of each

conductor and attach

them to the terminals,

complying with the infor-

mation given in the table,

• unscrew the cable clamp,

• pass the lead through the

cable clamp.

When you have finished

the connection operation

to the appliance terminals,

tighten the cable clamp and

close the cover.

Note: make sure the terminal board screws are tight.

SHUNT

MONOPHASE 230V~

2 Phase

shunt 1-2

shunt 2-3

5 Neutral

shunt 4-5

T Earth

CONNECTION

TO THE

TERMIMAL

BLOCK

1 Phase

3 Phase

shunt 2-3

5 Neutral

shunt 4-5

T Earth

THREE PHASES 400 V2~

CABLE

H05 VV-F or

H05 RR-F

4G1,5

Yellow/

green

Blue

Brown,

Red or Black

CABLE

H05 VV-F or

H05 RR-F

3G2,5

Brown,

Red or Black

Blue Yellow/

green

FUSE

CABLE
