8. When the machine is not use, the power source should

be disconnected.

9. Be sure to switch OFF and disconnect the attachment

plug from the receptacle to avoid a serious accident

before the depressed center wheel is assembling and

disassembling.

10. RCD

The use of a residual current device with a rated residual

current of 30 mA or less at all times is recommended.

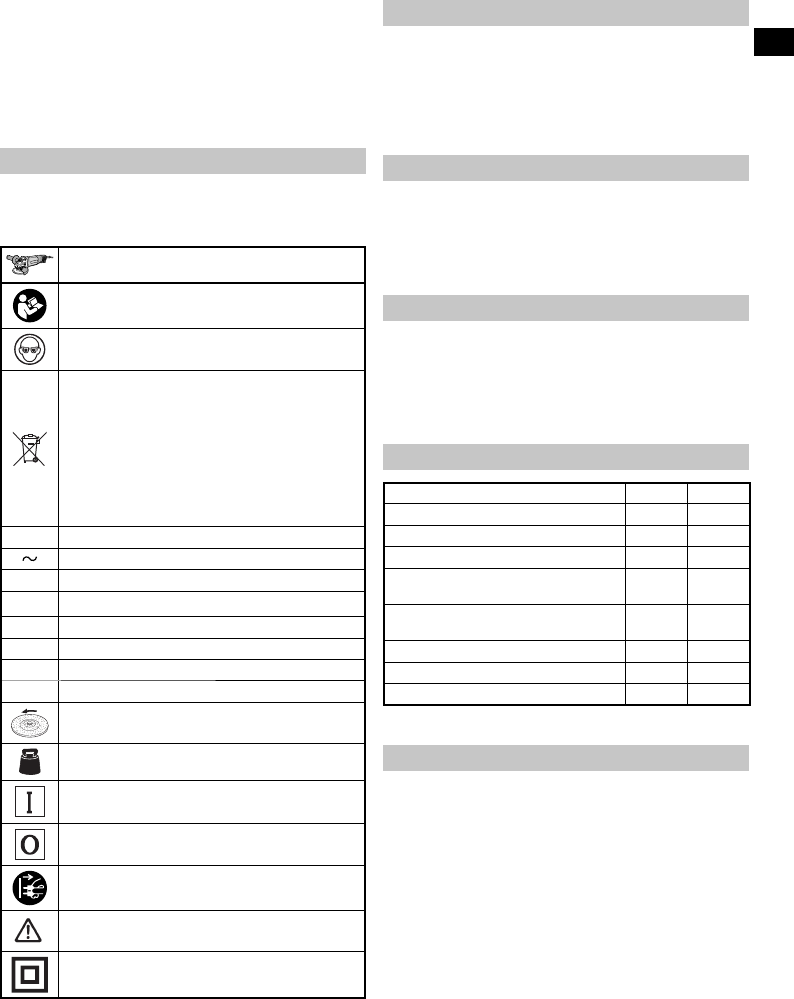

SYMBOLS

WARNING

The following show symbols used for the machine.

Be sure that you understand their meaning before

use.

G10SQ2 / G12SQ2 / G13SQ2

Disc Grinder

To reduce the risk of injury, user must read

instruction manual.

Always wear eye protection.

Only for EU countries

Do not dispose of electric tools together with

household waste material!

In observance of European Directive

2012/19/EU on waste electrical and electronic

equipment and its implementation in

accordance with national law, electric tools

that have reached the end of their life must

be collected separately and returned to an

environmentally compatible recycling facility.

V Rated voltage

Alternating current

P

Power input

n

Rated speed

min

-1

Revolution or reciprocations per minute

D Wheel outer diameter

d Wheel hole diameter

t Wheel thickness

Peripheral speed

kg

Weight

(According to EPTA-Procedure 01/2003)

Switching ON

Switching OFF

Disconnect mains plug from electrical outlet

Warning

Class II tool

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package

contains the accessories listed in the below.

(1) Wrench .........................................................................1

(2) Side handle ...................................................................1

(3) Depressed center wheel ...............................................1

Standard accessories are subject to change without notice.

APPLICATIONS

○ Removal of casting fi n and fi nishing of various types of

steel, bronze and aluminum materials and castings.

○ Grinding of welded sections or sections cut by means of

a cutting torch.

○ Cutting of synthetic concrete, stone, brick, marble, and

similar materials.

SPECIFICATIONS

The specifi cations of this machine are listed in the Table on

page 120.

NOTE

Due to HiKOKI’s continuing program of research and

development, the specifi cations herein are subject to

change without prior notice.

MOUNTING AND OPERATION

Action Figure Page

Fitting and adjusting the wheel guard 1 121

Fixing the side handle 2 121

Assembling depressed center wheel 3 122

Assembling cutting wheel and wheel

guard*

1

4 122

Assembling diamond wheel and

wheel guard*

1

5 122

Switch operation 6 122

Grinding angle and grinding method 7 123

Selecting accessories ― 124

*1 Optional

MAINTENANCE AND INSPECTION

1. Inspecting the depressed center wheel

Ensure that the depressed center wheel is free of cracks

and surface defects.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that

they are properly tightened. Should any of the screws be

loose, retighten them immediately. Failure to do so could

result in serious hazard.

3. Inspecting the carbon brushes

For your continued safety and electrical shock protection,

carbon brush inspection and replacement on this tool

should ONLY be performed by a HiKOKI AUTHORIZED

SERVICE CENTER.

4. Replacing supply cord

If the replacement of the supply cord is necessary, it

has to be done by HiKOKI Authorized Service Center to

avoid a safety hazard.
