EN

TRANSLATION (USER) MANUAL

OSCILLATING GRINDER59G322

NOTE: BEFORE USING A POWER TOOL, PLEASE READ THIS

MANUAL CAREFULLY AND SAVE IT FOR FURTHER USE.

SAFETY WARNINGS FOR THE OSCILLATING GRINDER

Hold the power tool by the insulated surfaces, as the grinding surface

may come into contact with its own wire. Failure of the "live" wire can

cause exposed metal parts of the power tool to be "energized" and can

cause the operator to be electrocuted.

When grinding wooden and metal surfaces, e.g. painted with paints with

the addition of lead, harmful/toxic dusts may be formed. Contact or

inhalation of such dusts may endanger the health of the operator or

bystanders. Appropriate personal protective equipment should be used,

such as filtering half masks, safety glasses. A dust extraction system must

be connected.

BEFORE USING THE GRINDER

• At the time of use, the grinder should be held firmly, with both hands.

• Before turning on the grinder, make sure that it does not touch the

material to be processed with sandpaper.

• Before turning on the grinder, make sure that the sandpaper is securely

fixed and that the paper clamping levers are in the paper clamping

position.

• Do not touch parts of the grinder that are in motion.

• Do not put the grinder down after switching off before its moving parts

stop.

• A protective mask should be used if dust is formed during grinding. Dust

formed when grinding surfaces painted with lead paint, some types of

wood and metal is harmful.

• Pregnant women and children should not enter a room where paint

containing lead compounds is removed with a grinder.

• In a room where paint containing lead compounds is removed with the

help of a grinder, it is forbidden to eat, drink or smoke.

• The use of long extension cords should be avoided.

DURING THE USE OF THE GRINDER

• When working with a grinder, always use ear and a protective half

mask.

• The grinder is not suitable for wet work.

• Before connecting the grinder to the network, check that the switch

button is not in the on position.

• Always keep the power cord of the device away from the moving parts

of the grinder.

• When working with a grinder above the operator's head, goggles or

anti-chip glasses should be used.

• When using the grinder, do not exert excessive pressure on it, which

could lead to the stop of the grinder.

REMARK! The device is used for indoor work.

Despite the use of a design that is safe by design, the use of

protective measures and additional protective measures, there is

always a risk of residual injuries during operation.

CONSTRUCTION AND PURPOSE

Oscillating grinders are handheld power tools with class II insulation. The

devices are driven by a single-phase commutator motor. The Oscillating

Grinder is designed for grinding and polishing wooden, metal, plastic and

other similar surfaces, using sandpaper with appropriate gradation.

Thanks to the use of various shapes of working feet, it allows you to work

even in hard-to-reach places. The areas of their use are the performance

of renovation and construction works, as well as all works in the field of

independent amateur activity (DIY).

The grinder must not be used for grinding materials containing

magnesium, asbestos or surfaces covered with gypsum.

DESCRIPTION OF GRAPHIC PAGES

The following numbering refers to the elements of the device shown on the

graphic pages of this manual.

1. Switch

2. Grinder holder

3. Dust collection container

4. Dust evacuation connection

5. Velcro work foot

6. Sandpaper clamp

* There may be differences between the drawing and the product.

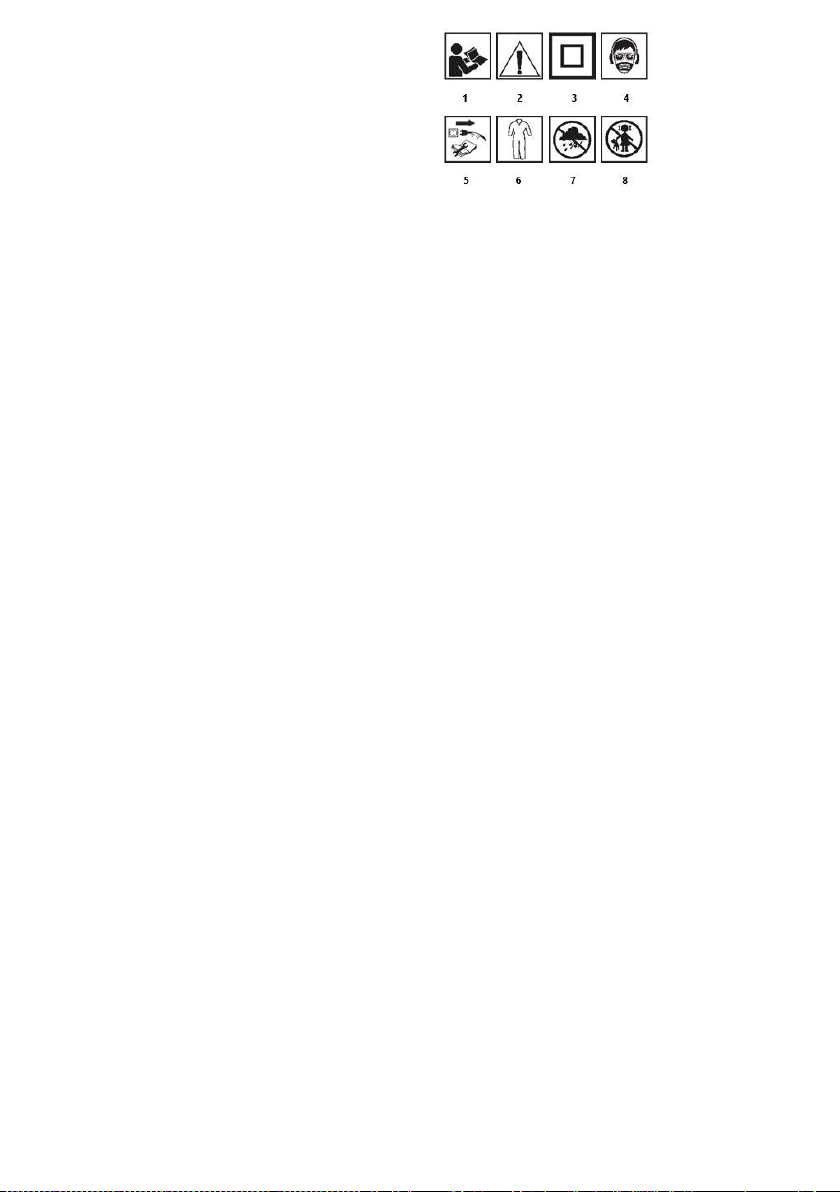

EXPLANATION OF THE PICTOGRAMS USED:

1. REMARK! Take special precautions!

2. Read the instruction manual, observe the warnings and safety

conditions contained therein!

3. Second protection class.

4. Use personal protective equipment (safety goggles, hearing protectors,

dust mask).

5. Disconnect the device before repair.

6. Use protective clothing.

7. Protect the device from moisture.

8. Do not allow children to the tool.

EQUIPMENT AND ACCESSORIES

Working foot rectangular, triangular, square (mounted to the device) – 3

pcs.

Container with a bag collecting dust – 1 pc.

Sandpaper of 3 pcs. for each working foot (different gradation) – 9 pcs.

PREPARATION FOR WORK

SELECTION OF SANDPAPER

Sandpaper with thicker grain is suitable for roughing most materials, and

paper with finer grain is used in finishing work.

• When the surface is not even, start the work with coarse paper and

continue until the surface is leveled.

• Then use medium-grained paper to remove traces left over from coarse

paper treatment.

• Finally, use fine-grained paper to perform the finishing operation.

SANDPAPER APPLICATION

The grinder has a working foot with the so-called Velcro, which allows for

easy and quick replacement of sandpaper.

• Bring the sandpaper closer to the working foot of Fig. A5 so that its

holes coincide with the holes in the working foot of the grinder and press

down to ensure effective dust removal.

• To remove the sandpaper, you need to tilt it on one side and then pull

it.

Perforated sandpaper should be used so that dust can reach through

the openings in the working alloy to the dust drainage system. Before

each change of sandpaper, the working foot should be cleaned,

removing dust and any impurities from it using, for example, a brush

or brush.

In addition, the grinder additionally has sandpaper clamps for a square or

rectangular foot in the case of using sandpaper not intended for Velcro

fastening.

• Choose the gradation of sandpaper appropriate to the planned work.

• To soften the paper, rub the smooth side against the edge, e.g. of a

table.

• Loosen the sandpaper clamps (5) (Fig.B).

• Place sandpaper on the grinder alloy (4).

• Make sure that the holes in the sandpaper and the working foot (4) fully

coincide.

• Bend both ends of the sandpaper at the edges of the grinder's foot.

• Tighten the sandpaper clamps (5).

• Make sure that the sandpaper is securely attached.

Sandpaper must fit snugly to the foot of the grinder. There can be no

slack. If during grinding the paper pulls out, then loosening should

be removed, which will significantly extend the service life of the

assumed strip of sandpaper.

DUST DISSIPATION

The Oscillating Grinder is equipped with a container for collecting dust to

maintain the cleanliness of the workpiece surface.

• Slide the attachment of the dust container (3) into the dust outlet nozzle

(2) and secure by turning to the right (Fig.C).

• Check the certainty of embedding the dust container on the dust

discharge port by lightly pulling the dust container (the dust container is

sealed with a rubber O-ring).

The dust bag is placed in the plastic housing of the dust container (3). In

order to empty it, slide the back of the plastic housing (Fig. D), remove the

dust bag from its attachment and remove its contents. Installation of the

dust bag proceeds in reverse order to its disassembly.
