Bedienungsanleitung Fender Blues Junior IV Gitarrenverstärker

Bedienungsanleitung

ENGLISH

3

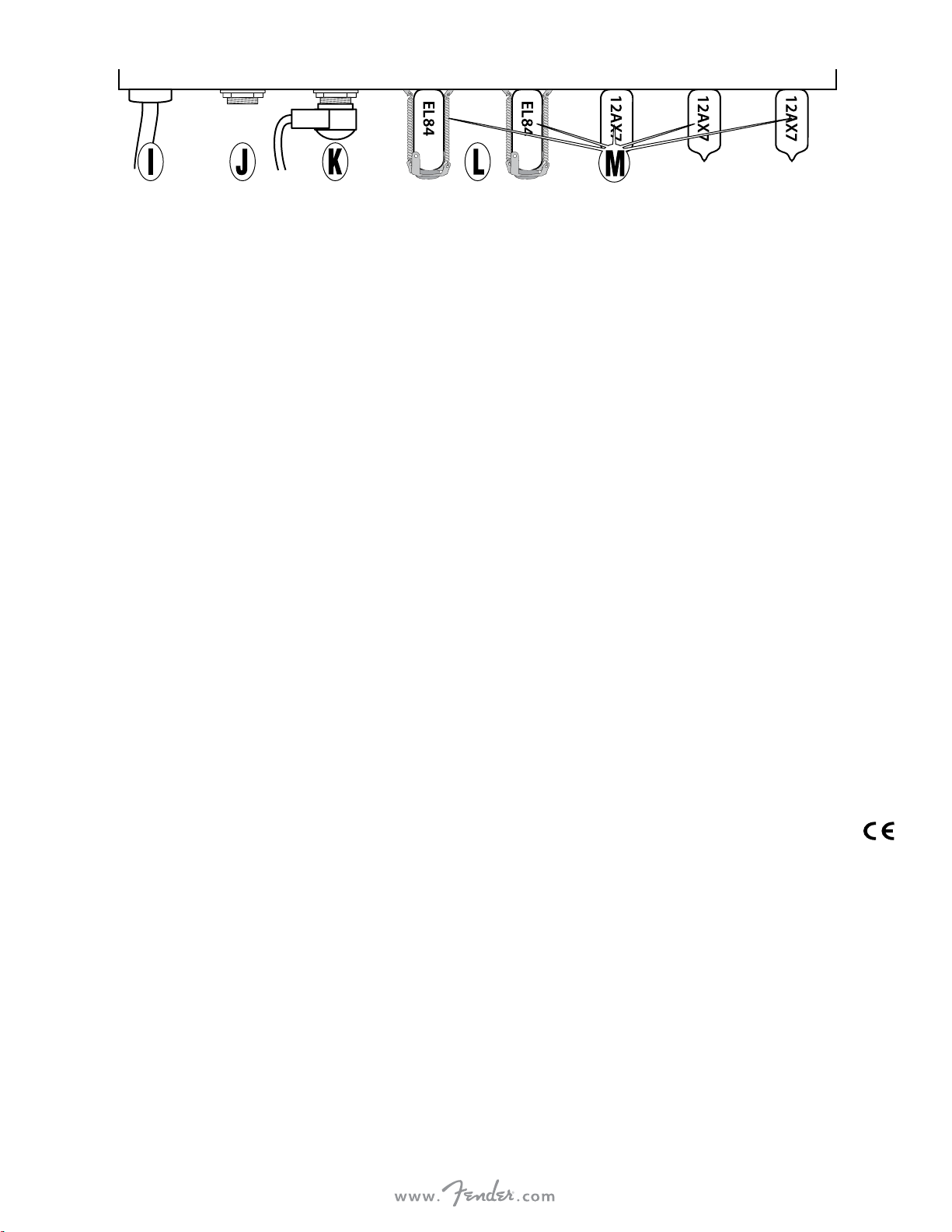

REAR PANEL

SPECIFICATIONS

TYPE PR 295

POWER REQUIREMENT 180W

POWER OUTPUT 15W RMS minimum into 8Ω at 5% THD, 1kHz

INPUT IMPEDANCE 1MΩ

TUBES Preamp 3 – 7025/12AX7A/ECC83

Output 2 – EL84/6BQ5

FUSE Internal (non-user serviceable)

SPEAKER 1 12” 8Ω Celestion® A-TYPE speaker

FOOTSWITCH 1 button, FAT switch (PN 0994049000)

COVER (OPTIONAL) Fitted cover (PN 0054912000)

DIMENSIONS Height: 16” (41 cm) Width: 18” (46 cm) Depth: 9 13/16” (25 cm)

WEIGHT 31 lbs. (14.1 kg)

Product specifications subject to change without notice.

I. POWER CORD: Connect to a grounded outlet in

accordance with the voltage and frequency ratings

specified on the rear panel of your amplifier.

J. FOOTSWITCH JACK: Plug in a footswitch to enable

remote selection of the FAT boost circuit. The FAT switch

(C) on the control panel is disabled when the footswitch is

connected.

K. SPEAKER JACK: Connection for the internal speaker or an

-ohm external speaker cabinet. An -ohm speaker load

must always be connected to the speaker jack when the

unit is on to prevent damage to the amplifier.

L. TUBE STABILIZER: A shock-absorbing stabilizer (light

gray) is installed on the output tubes to minimize the

tube vibration and microphonics that normally develop

over time. The stabilizer can be used with all output tubes

compatible with your Blues Junior IV amplifier.

M. TUBES: Your new Blues JuniorIV amplifier comes

equipped with the highest quality tubes available,

sourced from various manufacturers worldwide. Because

of occasional irregularities in supply, the specific tube type

used in each amplifier is subject to change without notice.

When replacing the EL output tubes, please note the

specific tube markings on the original tubes factory

supplied with your amplifier. For example, EL output

tube types include, but are not limited to: GT-EL-R;

GT-EL-S; ST-EL-R; etc. The installation of a different

type may require significant adjustment by a qualified

technician to avoid reduction in performance and tube life.

Additionally, Fender tests and sorts our EL output tubes

based on their measured performance. The sorted tubes

are labeled with a fine rating of - and may also be

labeled with a coarse rating color of BLUE, WHITE or RED.

A pair of matched EL output tubes with the same fine

rating (and coarse rating, if applicable) as the original tubes

will be the perfect replacement. However, replacement

tubes with a fine rating within one number of the original

tubes can be used without rebiasing the amplifier.

If you have questions or concerns, please contact your

Fender dealer or authorized service center.

N. FUSE (NOT SHOWN): In the unlikely event of an electrical

fault, your Blues Junior IV amplifier is protected by an

internal fuse. If the unit should suddenly stop working,

take it to an authorized service center to have the fuse

replaced and the cause of the electrical fault inspected.
